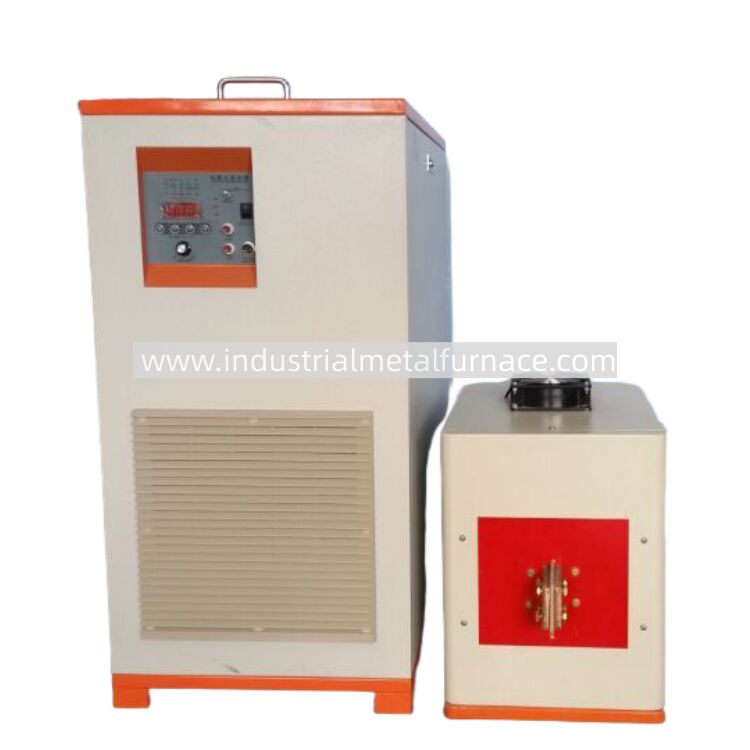

WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating

Name: WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: WDL-70B
Availability: InStock

Nom De La Marque:	WONDERY
Numéro De Modèle:	WDL-70B
MOQ:	1 ensemble
Prix:	TO BE NEGOTIATED
Délai De Livraison:	10 jours ouvrables
Conditions De Paiement:	LC, T/T

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

Tension d'entrée:

Triphasé 380 V, 50/60 Hz

Besoin d'eau de refroidissement:

0,2 MPa, 8 L/min

Gamme de fréquence:

30 à 80 kHz

Précision de contrôle de puissance:

± 0,5%

type de four:

chauffage à induction

Puissance nominale:

70 kW

Détails d'emballage:

caisse en contreplaqué

Capacité d'approvisionnement:

1000 ensembles par an

Description du produit

High-Efficiency 70KW Medium Frequency Induction Melting Furnace for Metal Heating | WDL-70B Series

Professional-Grade 70KW Medium Frequency Induction Melting Furnace – WDL-70B Series

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. offers the advanced 70KW Medium Frequency Induction Melting Furnace, model WDL-70B Series, engineered for reliable and efficient metal heating, melting, and heat treatment applications. Designed with robust IGBT power technology and proprietary converter control systems, this induction furnace ensures superior performance, energy savings, and minimal maintenance requirements.

Ideal for continuous industrial operations, the WDL-70B supports a 100% duty cycle, allowing 24/7 operation at full power without interruption. Its intelligent control system features constant current and constant power modes, along with adjustable timing functions for heating and holding cycles (0.1–99.9 seconds), ensuring precise temperature control and repeatable results.

Compact and user-friendly, the system requires only basic electricity and cooling water connections, making installation straightforward. The split-design main and sub-units are connected via a 2-meter cable, offering flexibility in workshop layout. With a total weight of just 110 kg, the furnace saves valuable floor space and simplifies maintenance.

Key Technical Parameters:

Parameter	Specification
Max Input Power	70 KW
Input Voltage	3-Phase 380V, 50/60 Hz
Frequency Range	30–80 KHz
Cooling Water Requirement	0.2 MPa, 8 L/min
Duty Cycle	100%
Heating/Hold Time Setting	0.1–99.9 seconds
Total Weight	Approx. 110 kg

This medium frequency induction heater is widely used in forging, smelting, brazing, and hardening processes. It includes three copper induction coils for versatile application across different workpiece shapes and materials. The unit also displays real-time output power, frequency, and current for easy monitoring.
